GEOQUIP SAENTIS

GEOQUIP SAENTIS + GMR600

+ GMR600

Geoquip Marine GMR600 Drilling Rig for Site Investigations
0m
Water + borehole depth
0m
Heave compensation

HIGHLY CAPABLE AND EFFICIENT VESSEL

The Geoquip Saentis was built in 2005 and is a DP2 integrated geotechnical survey vessel (IGSV), specially designed for research operations in harsh weather conditions. In early 2019, she went through a massive overhaul and has been commissioned to conduct offshore geotechnical operations.  The vessel comes with good spacious accommodations and workspaces and the fully heave compensated GMR600 drilling rig has been installed over the 4m x 4m midship moon pool. With her 720m2 deck space she provides a stable platform for offshore geotechnical operations.

Geoquip Saentis docked

ON-BOARD SYSTEMS

Capable of handling 600m of drill string and down to 1000m with aluminium pipe. The rig has a 4m stroke passive heave compensation.

A comprehensive range of wireline downhole sampling tools are available including piston sampling, push sampling, wireline core barrel and percussion (hammer) sampling. All downhole tools are fully compatible within the 5.5” API drill string. A range of drag and specialised coring bits are provided. Large diameter cores are possible thanks to the large diameter drill pipe.

Fitted with a wireline operated, 3m PCPT tool for cone penetration testing with pore water pressure measurement, and a wireline operated, 3m seismic PCPT tool for cone penetration testing with pore water pressure and seismic velocity measurements. Presently 350m PCPT umbilical and winch capacity. Downhole PS wave logger available as required.

ON-BOARD SOIL LABORATORY

The Geoquip Saentis is fitted with an offshore soil laboratory, enabling our geotechnical engineers to immediately conduct soil classification and determine strength parameters for design, analysis and assessments in real time whilst offshore. The data allows our engineers to perform spudcan penetration and/or pile capacity/installation analysis onboard as the borehole progresses, allowing an optimisation of the actual borehole depth.

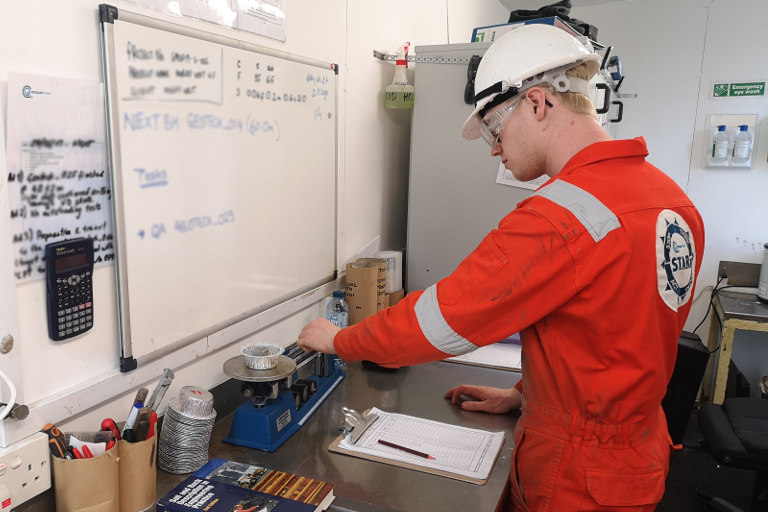

Geoquip Marine Offshore Lab Sample Analysis

The laboratory is equipped with the necessary tools to conduct standard soil and rock tests. Routine sample handling, photography, classification and storage are part of the everyday work process in the laboratory. The testing regime on samples varies and can be tailored to your project.

Recovered samples are stored in a temperature-controlled environment prior to shipment to an onshore facility.

SEABED SYSTEMS

As an option, the Geoquip Saentis can carry Geoquip Marine’s GMC201 20T seabed unit to rapidly conduct an array of in situ tests.

Geoquip Marine raising the GMC201 PCPT Seabed System

When your project requires in situ testing, in either shallow or deep water, the seabed unit can be quickly deployed offering faster turnaround and reducing costs.

The seabed system is deployed through the vessel’s moonpool using the rig’s derrick and compensation system.
